Two Winding Coil Oil Filled Pad Mounted Transformer Three Phase 24.94kV 12.47kV 480V

Name: Two Winding Coil Oil Filled Pad Mounted Transformer Three Phase 2494kV 1247kV 480V
Brand: HENTG Power
Price: 7900 USD

China Two Winding Coil Oil Filled Pad Mounted Transformer Three Phase 24.94kV 12.47kV 480V wholesale

Place of Origin : China

Brand Name : HENTG Power

Model Number : ZGS Series

Certification : CE

Price : CN¥7900-15900/sets 1-9 sets

MOQ : 1

Frequency : 60Hz, 50Hz, 50/60 Hz

Phase : Three

Coil Number : Two Windings

application : power transformer

Coil Structure : TOROIDAL

Output Voltage : 440V, 380V, 480V, 400V

Input Voltage : 35kV, 10kV, 6kV, 11kV, 12.47kV

Type : Oil-Immersed Transformer, Pad Mounted Transformer

Product name : three phase ul pad-mounted distribution transformer

Rated capacity : 500kva 630kva 1 mva 500 kva150kva 333 kva

Rated voltage : 13.2kv/13.8kv/24.94kv/34.5kv/44kv

Cooling Method : ONAN

Winding Material : Copper \ Aluminum

Warranty : 3 Years

Noise : <50dB

Cooling Class : KNAN - FR-3 Fluid; Self-Cooled

Transformer Type : Pad Mounted, Compartmental-Type

Kva Rating : 2500KVA

Product Type : Pad Mounted Transformer

Application : Distribution Transformer

Enclosure : NEMA Type 3R

Impedance : 2.5-5%

Secondary Voltage : 13200GrdY/7620 Or Customized

Insulation Rating : Class E Insulation - 120°C, 248°F

Protection Level : IP23

Cooling Type : ONAN/KNAN

Feed Type : Loop Feed

Enclosure Rating : NEMA 3R

Mounting : Pad-Mounted

Overload Protection : Thermal Magnetic Circuit Breaker

Certifications : UL Listed, CSA Certified, CE Marked

Core Material : Grain Oriented Steel

Insulation Class : Class A

Contact Now

Three Phase Pad Mounted Transformer

High-performance oil-filled pad mounted transformer with capacities ranging from 300-3000 KVA, designed for reliable power distribution in industrial applications.

Product Specifications

Attribute	Value
Frequency	60Hz, 50Hz, 50/60 Hz
Phase	Three
Coil Structure	TOROIDAL
Output Voltage	440V, 380V, 480V, 400V
Input Voltage	35kV, 10kV, 6kV, 11kV, 12.47kV
Type	Oil-Immersed Transformer, Pad Mounted Transformer
Rated Capacity	500kVA, 630kVA, 1 MVA, 500 kVA, 150kVA, 333 kVA
Cooling Method	ONAN/KNAN
Winding Material	Copper / Aluminum
Warranty	3 Years
Noise Level	<50dB
Certifications	UL Listed, CSA Certified, CE Marked

Two Winding Coil Oil Filled Pad Mounted Transformer Three Phase 24.94kV 12.47kV 480V

Capacity (KVA)	HV	Tapping Range	LV	No-load Loss	Load Loss	Impedance	Efficiency
75	2400-34500V	±2X2.5%	110-690V	130	100	4.0-6.3	99.03
152				200	1800		99.16
225				350	3100		99.23
300				430	3700		99.27
500				600	5410		99.35

Key Features

Fully sealed structure with high-ignition-point insulating oil
IP54 protection rating against dust and water ingress
Multiple power supply configurations including terminal power supply
High-quality cold-rolled silicon steel core for low no-load loss
Oxygen-free copper windings for reduced load loss
Advanced temperature monitoring system for real-time operation tracking

Performance Advantages

Enhanced fire safety with sealed construction and high-ignition-point oil
Reliable operation in harsh environments with IP54 protection
Flexible power supply options for increased system reliability
Energy efficient design reduces operating costs
Proactive maintenance enabled by temperature monitoring

Customer Benefits

Safe operation with reduced fire risk
Minimized power interruptions for continuous operation
Long-term cost savings through energy efficiency
Extended equipment lifespan with proactive maintenance
Reliable power solution with lower total cost of ownership

Product Tags:

480V Oil Filled Pad Mounted Transformer

Two Winding Coil Pad Mounted Transformer

Pad Mounted Transformer Three Phase 24.94kV

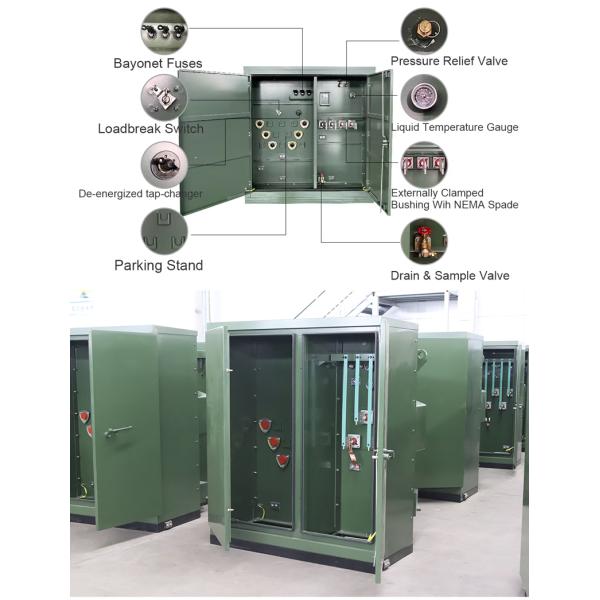

Two Winding Coil Oil Filled Pad Mounted Transformer Three Phase 24.94kV 12.47kV 480V Images
