Electrical Step Up Transformer 220v To 380v 630Kva 800KVA For Industrial Power Systems

Name: Electrical Step Up Transformer 220v To 380v 630Kva 800KVA For Industrial Power Systems
Brand: HENTG Power
Price: 4291 USD

China Electrical Step Up Transformer 220v To 380v 630Kva 800KVA For Industrial Power Systems wholesale

Place of Origin : China

Brand Name : HENTG Power

Model Number : S20

Price : CN¥4291-5514/sets

Certification : CE

MOQ : 1

Frequency : 50Hz, 60Hz

Phase : Three

Coil Number : Two Windings, Multi Winding, Three Windings

application : power transformer

Coil Structure : round coil, Shell-Type Coil, layer coil, fully sealed construction, Disc Coil

Output Voltage : 10kV, 415V, 220V, 110V, 380V, 400V , 440V, 480V

Input Voltage : 11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV

Type : Oil-Immersed Transformer, Voltage Regulator Transformer

Customization : Accept

Winding materials : Copper/Aluminum

Vector Group : Yyn0/Dyn11

Product Name : Three Phase Oil Immersed Transformer

Color : Gray

Voltage : 10 or 35 kV

Use : Power

Temperature Rise : 65℃

Rated Capacity : high

Package : Wooden Case

Impedence : 4.75% or Customized

Insulation Class : Class A

Keywords : distribution power transformer

Contact Now

Electrical Step Up Transformer 220v To 380v 630Kva 800KVA For Industrial Power Systems

Product Specifications

Attribute	Value
Frequency	50Hz, 60Hz
Phase	Three
Coil Number	Two Windings, Multi Winding, Three Windings
Application	Power Transformer
Coil Structure	Round coil, Shell-Type Coil, Layer coil, Fully sealed construction, Disc Coil
Output Voltage	10kV, 415V, 220V, 110V, 380V, 400V, 440V, 480V
Input Voltage	11kV, 10.5kV, 3kV, 12.47kV, 6.6kV, 6.3kV, 6kV, 10kV, 35kV, 69kV, 110kV, 115kV
Type	Oil-Immersed Transformer, Voltage Regulator Transformer
Customization	Accept
Winding Materials	Copper/Aluminum
Vector Group	Yyn0/Dyn11
Product Name	Three Phase Oil Immersed Transformer
Color	Gray
Voltage	10 or 35 kV
Use	Power
Temperature Rise	65℃
Rated Capacity	High
Package	Wooden Case
Impedance	4.75% or Customized
Insulation Class	Class A

Technical Specifications

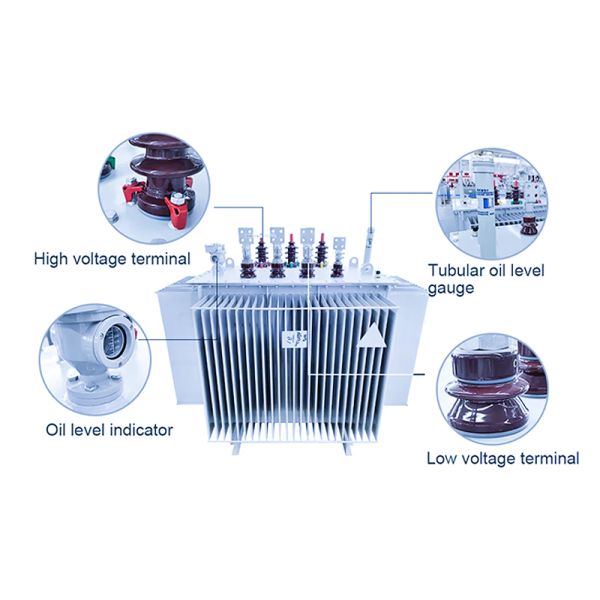

HENTG POWER Step up Transformer 220v to 380v 3 Phase 50 Kva Electrical Transformer for Industrial Power Systems

S20 type energy-efficient secondary oil-immersed transformer

Rated capacity (KVA)	Vector Group	Voltage Combination	No-load loss	Load loss	Impedance
30	Yyn0 / Dyn11	10 6.3 6	70	505	4.0
50			90	730
63			100	870
80			115	1050
100			135	1265
125			150	1510
160			180	1850
200			215	2185
250			260	2560
315			305	3065
400			370	3615
500			430	4330	4.5
630			510	4960
800			630	6000
1000			745	8240
1250			870	9600

Electrical Step Up Transformer 220v To 380v 630Kva 800KVA For Industrial Power Systems

Why Choose Us?

Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
100,000m² factory, 250+ workers, 30+ senior engineers and 8 production lines, 20000+ sets annual production capacity.
100% OQC testing with 8 main detection contents.
15+ years power transformer designing and manufacturing experience.
Comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standard
Cross-industry power transformer solution.
Global on-site technical support.

Frequently Asked Questions

Q: Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Q: Why choose us?

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.

Q: What services can we provide?

Accept OEM, business payment are negotiated.
